Katrina brought us her iPhone 11 because it would not turn on. The phone looked clean, with no physical or liquid damage, but her important data was not backed up to iCloud. A battery, charging port, and screen had already been tried elsewhere. We took a closer look at the original logic board, found the problem in the USB and charging control circuit, and brought her phone back to life with all of her data still there. Katrina paid $280 for this repair.
Fast Repair • 4424 Freeport Blvd #4, Sacramento, CA 95822 • (916) 477 5995
Katrina’s Repair at a Glance
Every phone is a little different. Price, repair options, timing, and the chance of recovering data depend on what we find during the inspection. We cannot promise a data recovery result before we check the device.
Why Saving the Original Phone Mattered
Her data could not simply be replaced
Katrina told us she could buy another phone, but much of the information on this iPhone had never made it to iCloud. What she really needed was access to the original phone and everything stored on it.
New parts were not the answer
Before Katrina came to us, a battery, charging port, and screen had already been tried. None of them brought the phone back, so we knew it was time to look more closely at the logic board.
Katrina also told us that Apple and other shops had said the phone could not be repaired. We listened to what had already happened, then started a fresh diagnosis and tested the original board ourselves.
How We Found the Problem

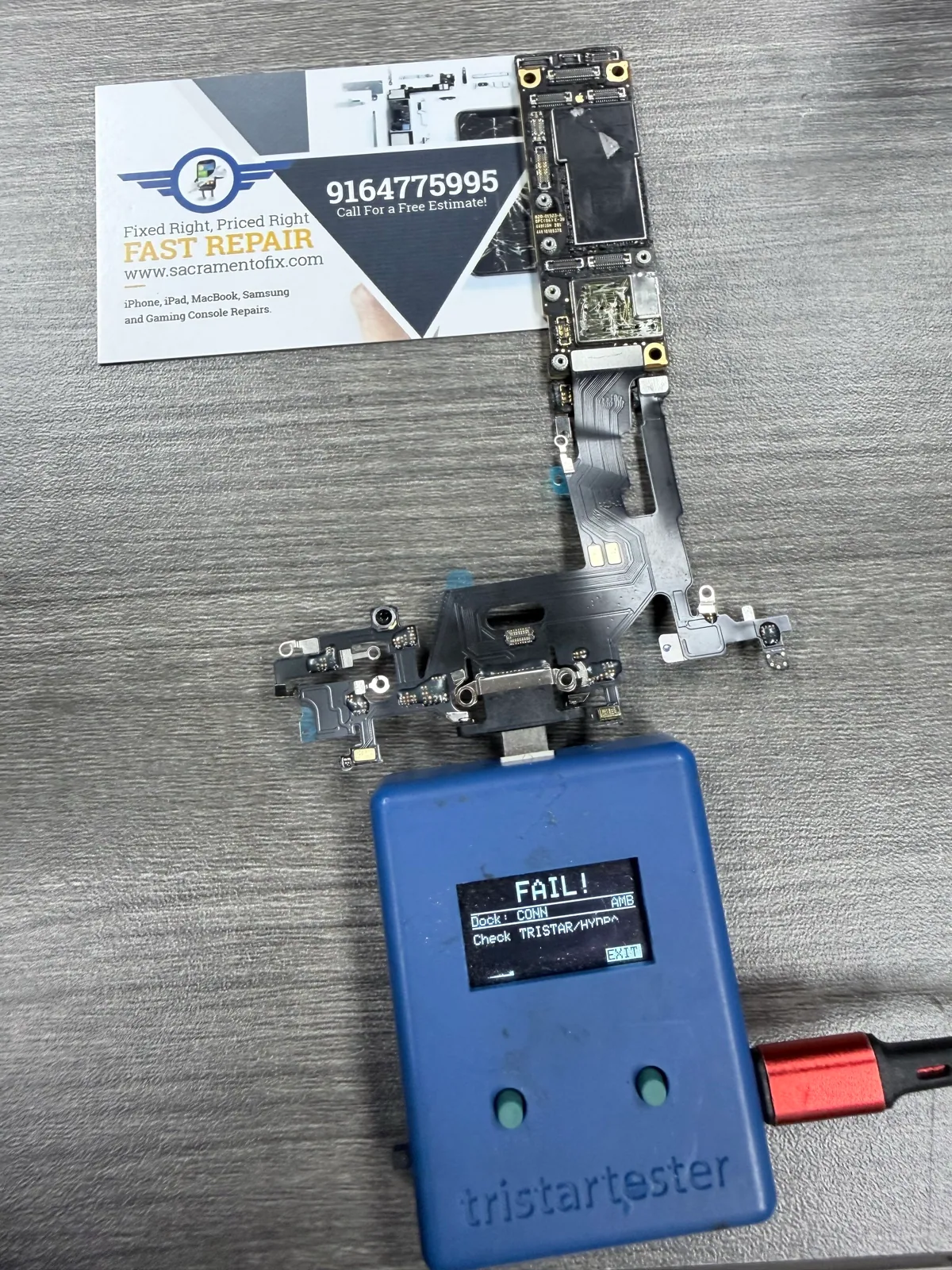

We removed the logic board, connected a charging port that we knew was working, and checked the charging and USB communication path with a TriStar/Hydra diagnostic tool. The first result was FAIL. That gave us a clear direction and pointed to the charging control circuit instead of the battery, screen, or charging port.
The tester gave us an important clue, but we did not stop there. We also checked the board with a multimeter and completed several more tests before putting the phone back together.
Careful Microsoldering to Protect Her Data
The failed charging control chip sits under a metal shield that is soldered to the logic board. This is a delicate area. Too much heat, pressure, or tool movement can damage the board and make the stored data impossible to reach. That is why we took our time and opened only the small area we needed.
A careful approach
We gently opened just enough of the shield to reach the failed circuit while protecting the nearby board and the components that matter for Katrina’s data.
The parts we replaced
We replaced the charging control IC. We also replaced one small capacitor and one larger power coil in the same area as part of the repair.
Testing at every step

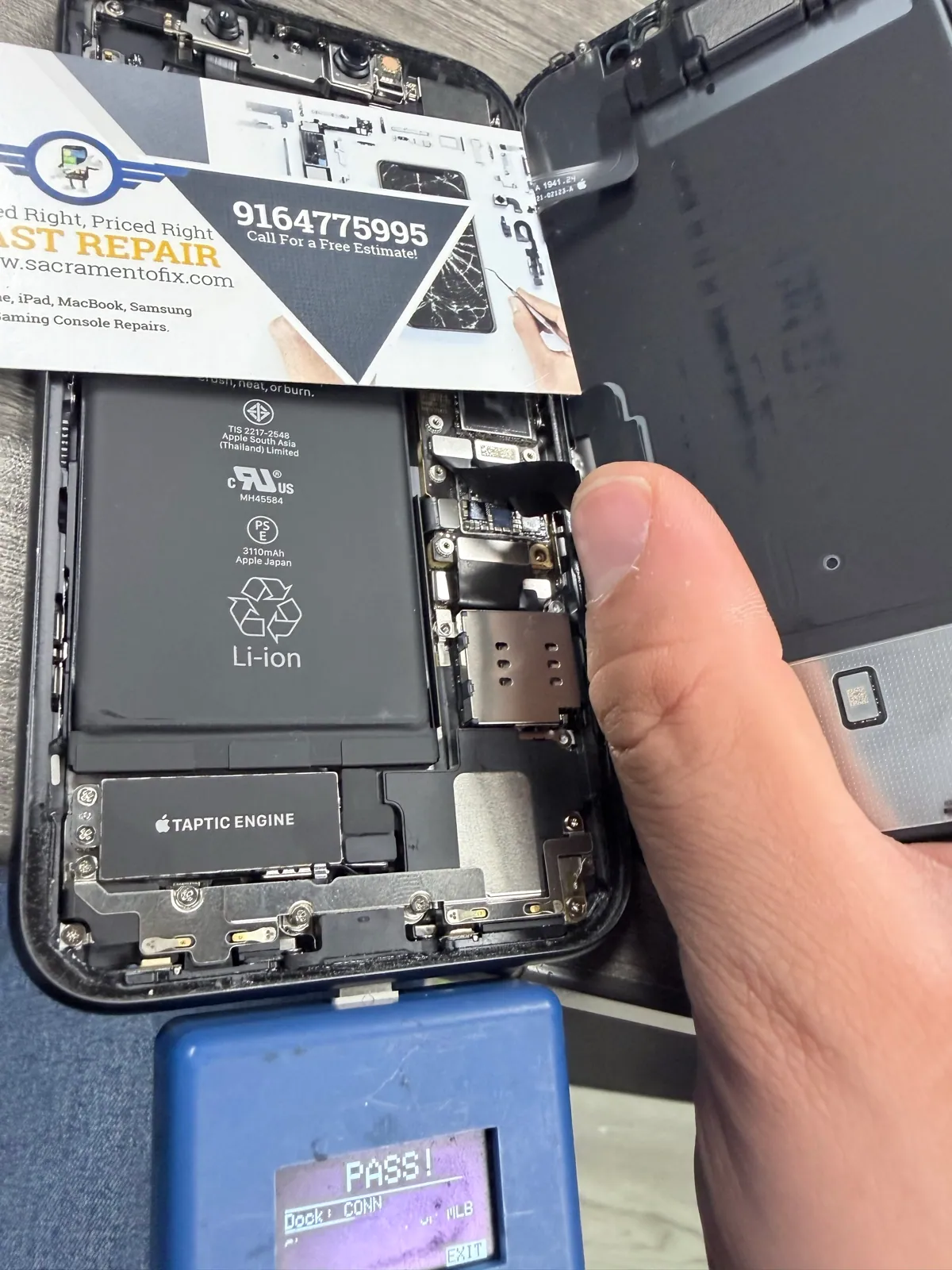

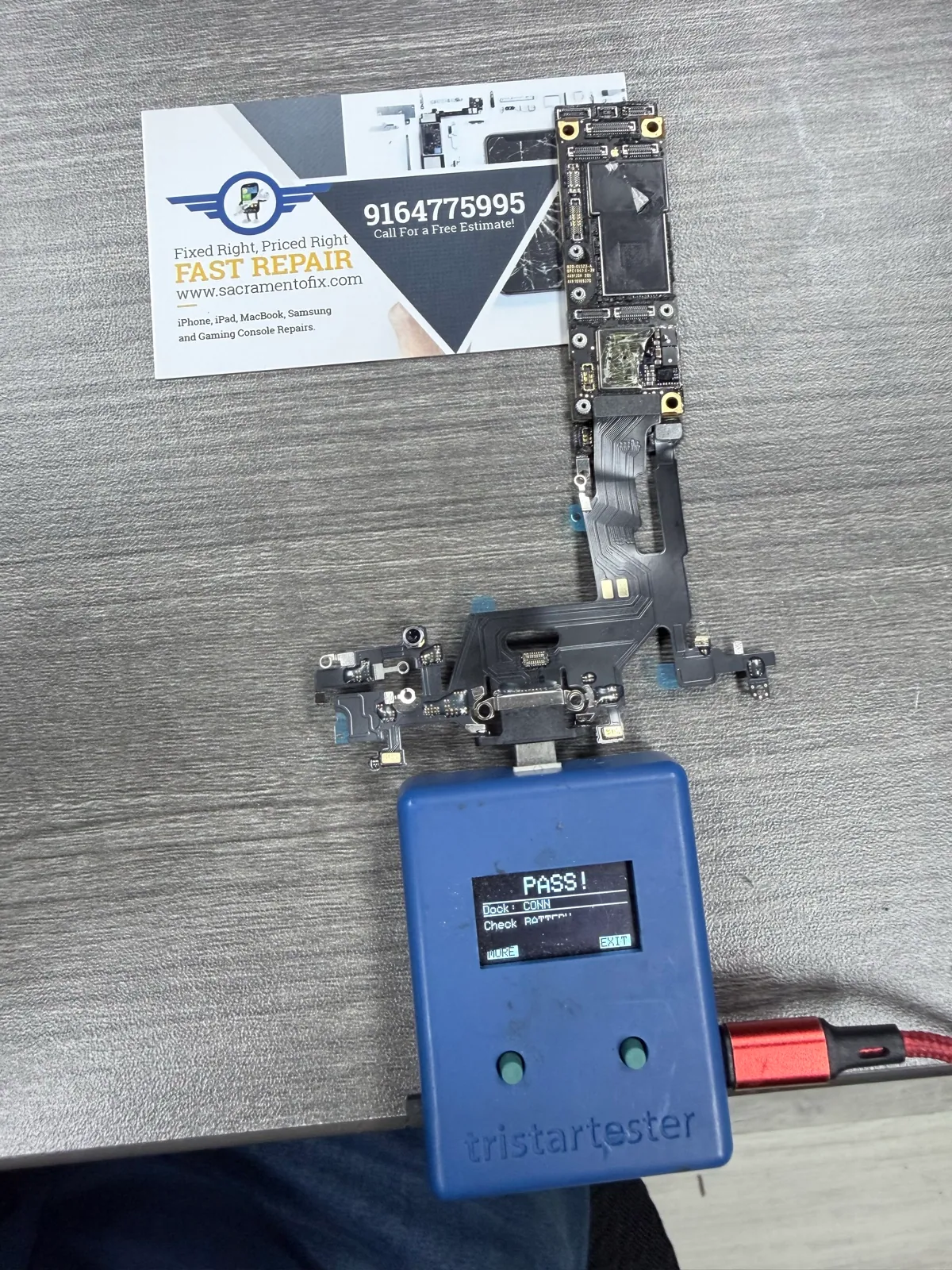

After the microsoldering work, the diagnostic tool changed from FAIL to PASS. We checked the board with a multimeter and ran more power and charging tests before closing the phone.

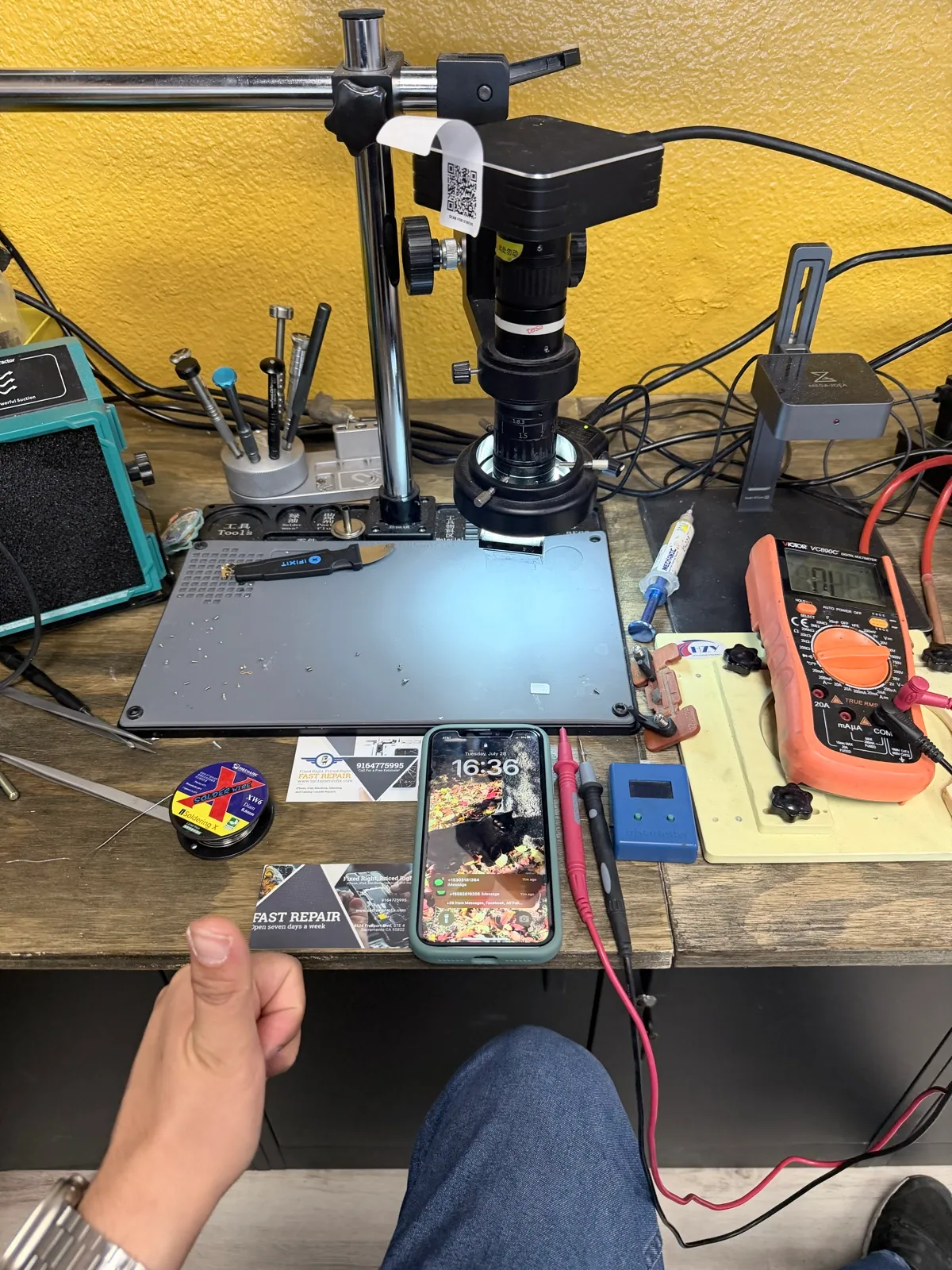

A Look Inside the Repair
These are real photos from Katrina’s iPhone 11 repair. We made sure no passcode, message, Apple ID, or other private information is visible.
A Few Final Checks Before We Called Katrina
- TriStar/Hydra diagnostic changed from FAIL to PASS
- Board measurements checked with a multimeter
- Power and charging behavior remained stable

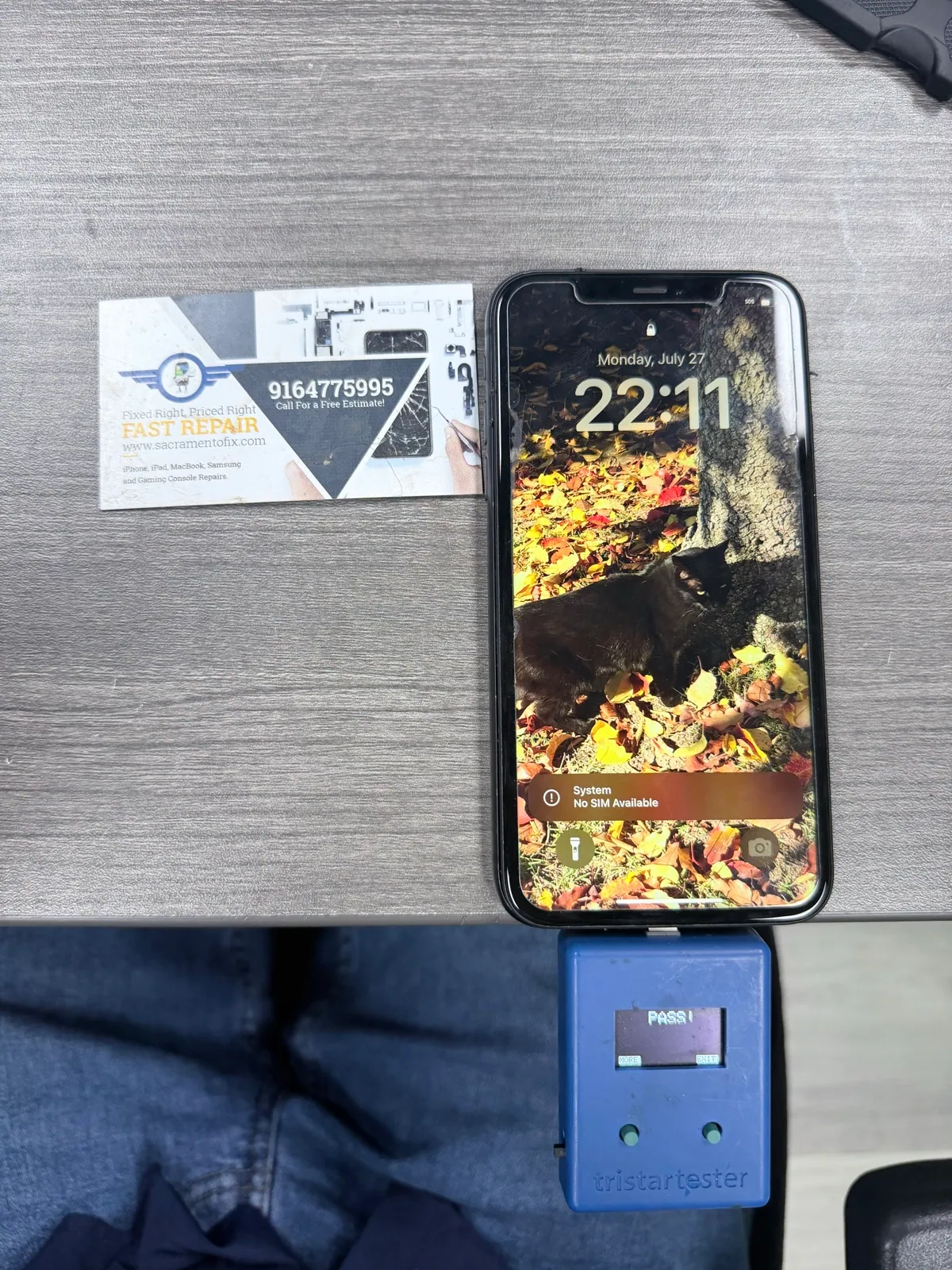

- The original iPhone 11 powered on normally
- The phone was fully reassembled and checked
- Katrina’s existing data remained accessible
Katrina’s Google Review
★★★★★
“Highly recommend for iPhone repairs! Was able to fix my phone and keep all data when other places told me it wasn’t possible. Amazing service!”
Katrina · Google review
Questions We Often Hear About iPhone 11 Repairs
Can a dead iPhone 11 be repaired without losing data?
Sometimes. If we can safely repair the original logic board, the phone may come back without being erased. Every case is different, so we need to inspect the device before we can talk honestly about the chances.
Why didn’t a new battery, screen, or charging port fix this phone?
Those parts had already been tried. Our tests pointed to the charging and USB control circuit on the logic board, so this phone needed microsoldering instead of another replacement part.
What does a TriStar/Hydra tester FAIL result mean?
It points to a problem in the phone’s USB or charging control path. It is a helpful clue, but we still confirm the problem with electrical measurements and other tests.
Why was opening the metal shield risky?
The shield is soldered over a sensitive area of the logic board. Too much heat, force, or tool movement can damage nearby components or board layers and can make the data unrecoverable.
Does every repair like this cost $280?
No. Katrina paid $280 for this repair. The price for another phone will depend on the model, the failed parts, previous repair attempts, the condition of the board, and what we find during the diagnosis.
